Vacuum Insulated Pipe (Click Here)

VACUUM INSULATION PIPE
Nominal Diameter DN10 DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300
Design Pressure 1.6~6.4 MPa(According to customer requirements）
Design Temperature 　-200C~90℃ （LHe：-270~90℃）
Ambient Temperature -40~90℃
Material TP304 (According to customer requirements)
Medium LO2、LN2、LAr、LH2、LHe、LNG
Leakage Rate ≤1*10-9Pa*m3/S

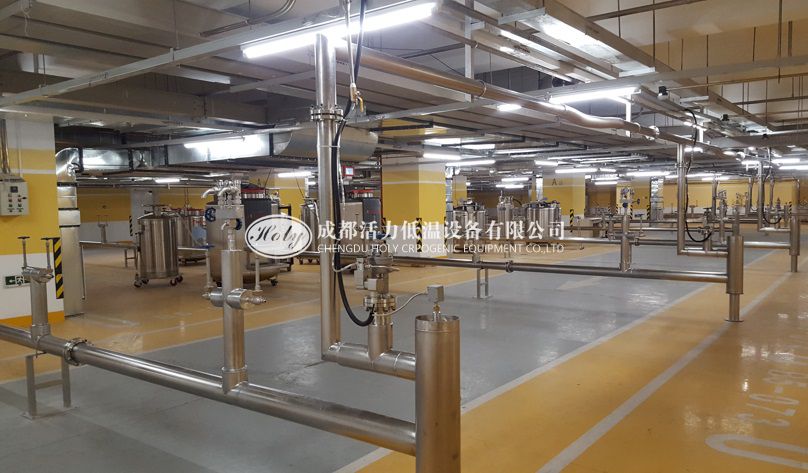

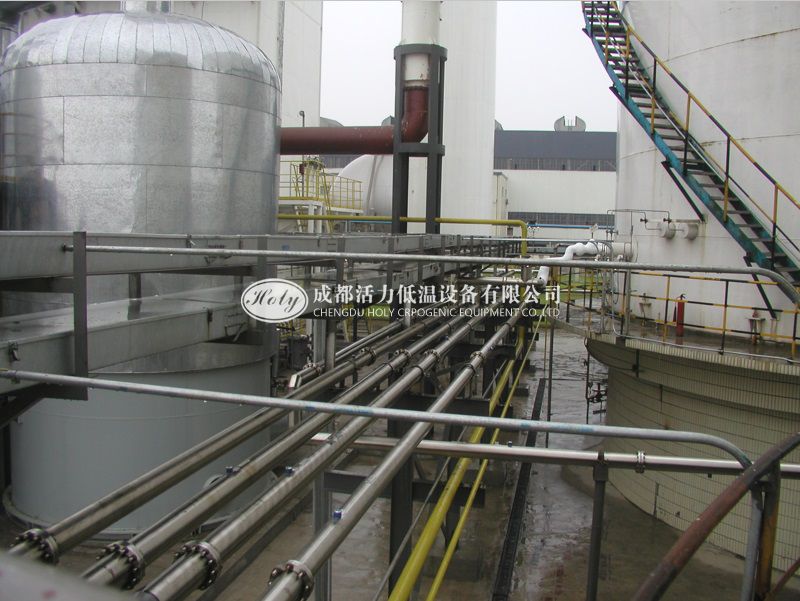

Vacuum Insulation Piping System

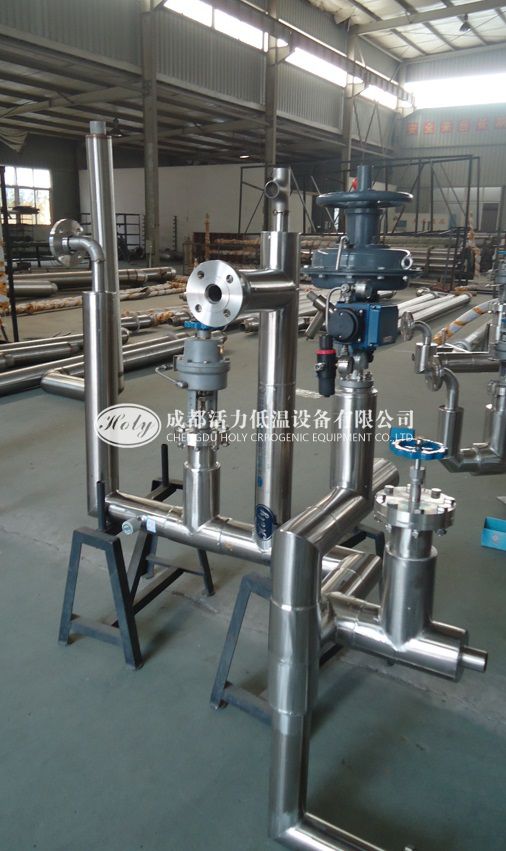

Vacuum Insulation Valves on Vacuum Insulation Piping System



Vacuum Insulation Pipe of Welded Connection Type

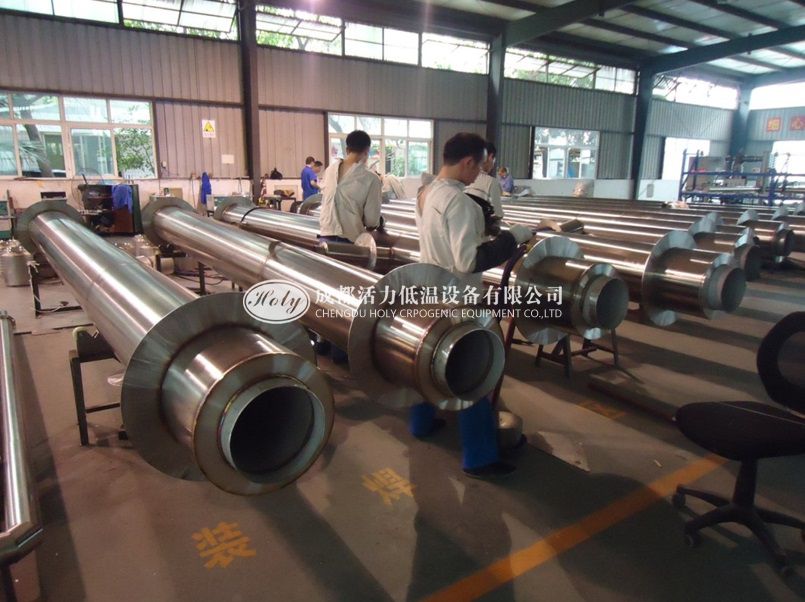

Vacuum Insulation Pipe of Flange Connection Type

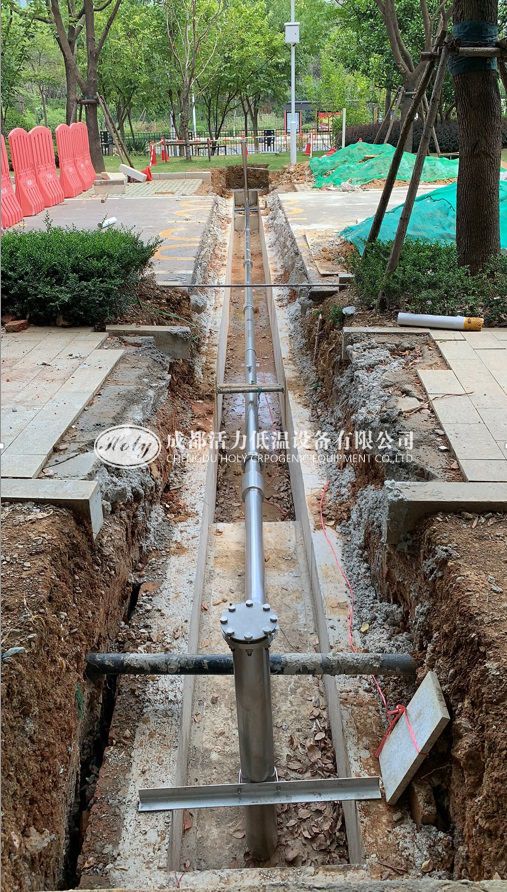

Embedded Vacuum Insulation Pipe
