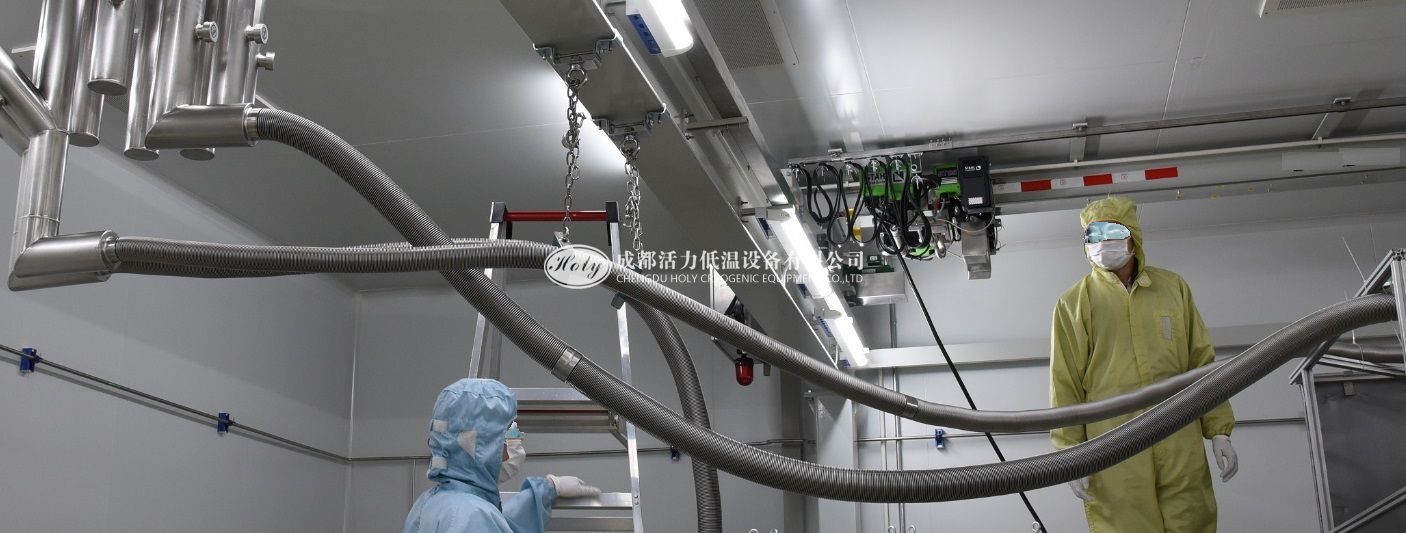

1.High vacuum jacketed stainless steel hose, adding special multi-layer insulation composite material at the interlayer. The cold loss is small and the surface of hose does not freeze or frost.
2. Small bending radius and adapt to various situations, length can be decided according to user's request.
3. It can be directly connected with the vacuum insulation pipeline, or it can be connected with other equipment with screw thread or flange.
4. The end of the vacuum hose can be equipped with storage tank and tanker’s special joint/connector, which can greatly reduce the loss of liquid.
Working Pressure：2.0MPa
Design Temperature: -200C~90℃
Medium： LO2、LN2、LAr、LH2、LHe、LNG
Leakage Rate of Vacuum Pipeline：≤1*10-9Pa*m3/S
Ambient temperature：-20~50℃
